Pefect the world with pure water
1 Years
| Ask Lasest Price | |
| Brand Name : | SINOMEMB |
| Model Number : | SNU-HO-2-Z225L |
| Certification : | NSF |
Module | TY-MBR-10 | TY-MBR-15 |
Width (W:mm) | 535 | 535 |
The length of the installation (H:mm) | 1050 | 1550 |
Membrane area (m2) | 10 | 15 |
The membrane flux (T/d) | 3~6 | 4.5~6 |
Membrane material | PVDF/PP | |
Membrane shell material | ABS | |
Intercept aperture (um) | 0.1-0.2 | |
ID/OD of hollow fiber (mm) | 0.9-2.1 | |
Suction pressure (Mpa) | -0.01~-0.05 Mpa | |
Range of PH | 2-10 , Washing: 2-12 | |
The proportion of air and water | 15-25 | |
Water production cycle | work 13min , stop 2min | |
Aeration rate (Nm3/m2*h) | 90-150 | |
Period of chemical cleaning | 120-180 d | |
Reverse flushing pressure (Mpa) | <0.05 | |
Working temperature | 5-45ºC | |

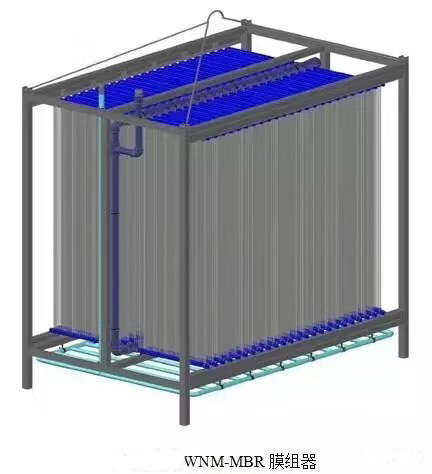

Membrane bioreactor (MBR) is a new wastewater treatment technology which combines membrane separation technology and bio-technology, no secondary sedimentation tank is needed that can reduce the investment.
Activated sludge and macromolecular organic matter are trapped in biochemical reaction pool by membrane separation device, activated sludge concentration is greatly improved.
Hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled separately. That makes the refractory organics gradually decomposed. Membrane bioreactor (MBR)has greatly enhanced Sewage treatment capacity and effect.
MBR technology is currently one of the most promising wastewater treatment technologies.
Delivery Details :
Samples:
Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Mass order Production :
Lead time: 10-15 working days after receipt of deposit.
Shipment Method :
By Aircargo: Different Airline for your optional with good price .
By Sea : Different shipping company for your optional with good price .
By Express : DHL ,TNT, FedEx,UPS,EMS etc.
You can choose your own shipping company.
Service and Advantage:
Delivery Service :
Payment Terms:
Technical Service:
Quality service:
1. What are my payment options?
For samples, it is 100% in advance.
For mass production, it is 50% in advance and 50% balance.
Welcome West Union and TT. bank account.
2. How long will it take to ship my order?
As long as there is stock available, Teenwin biogas usually ships items within 3 work days for samples and within two weeks for formal order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches our bank account. If we aretemporarily out of stock, we will do our best to inform you of the estimated lead time.
3. What does your warranty cover?
Teenwin’s biogas product is backed by a 1 year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
Partial OEM model parameters of SINOMEMB ® UF membrane
Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.
|
|
